TYPE-C

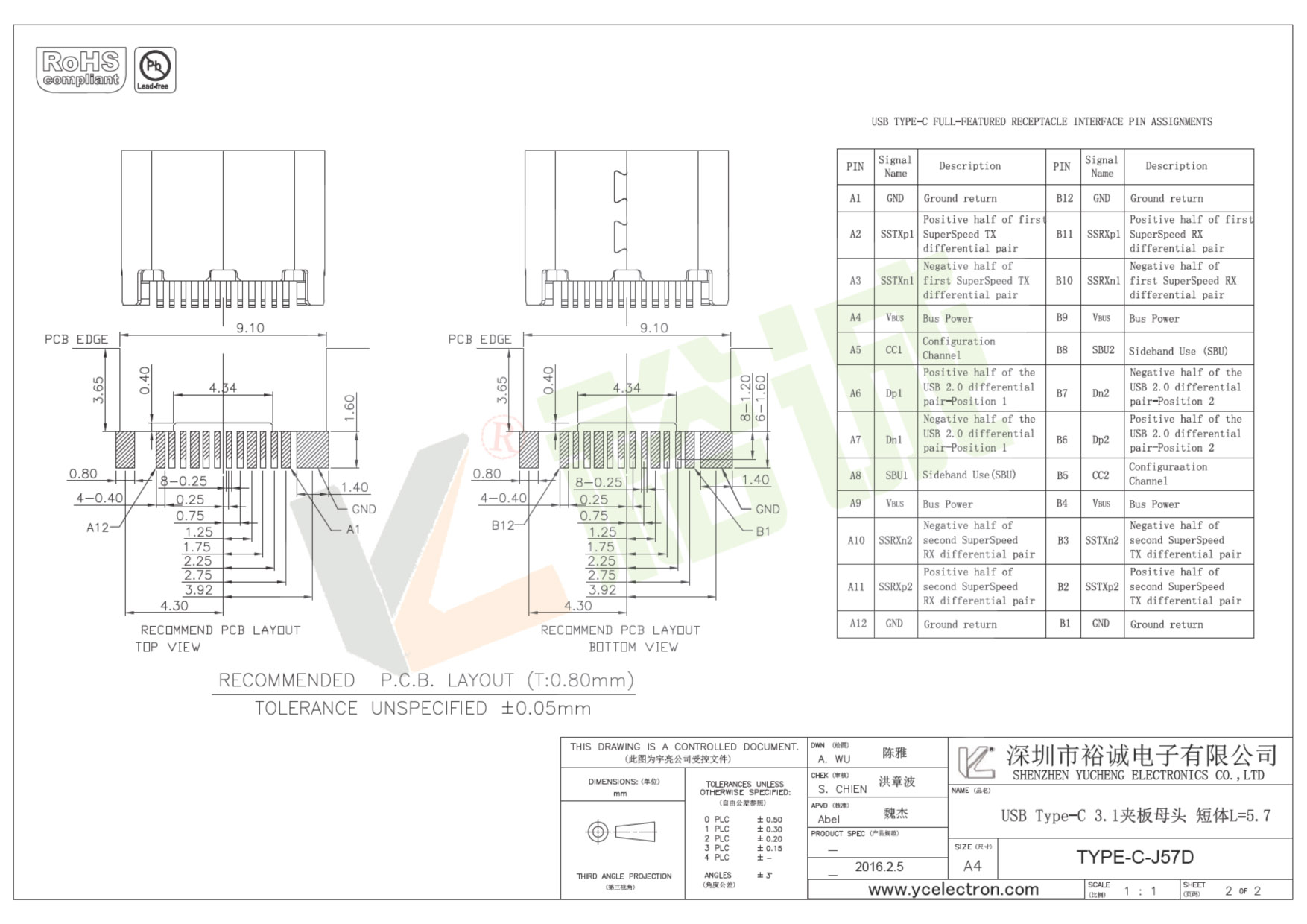

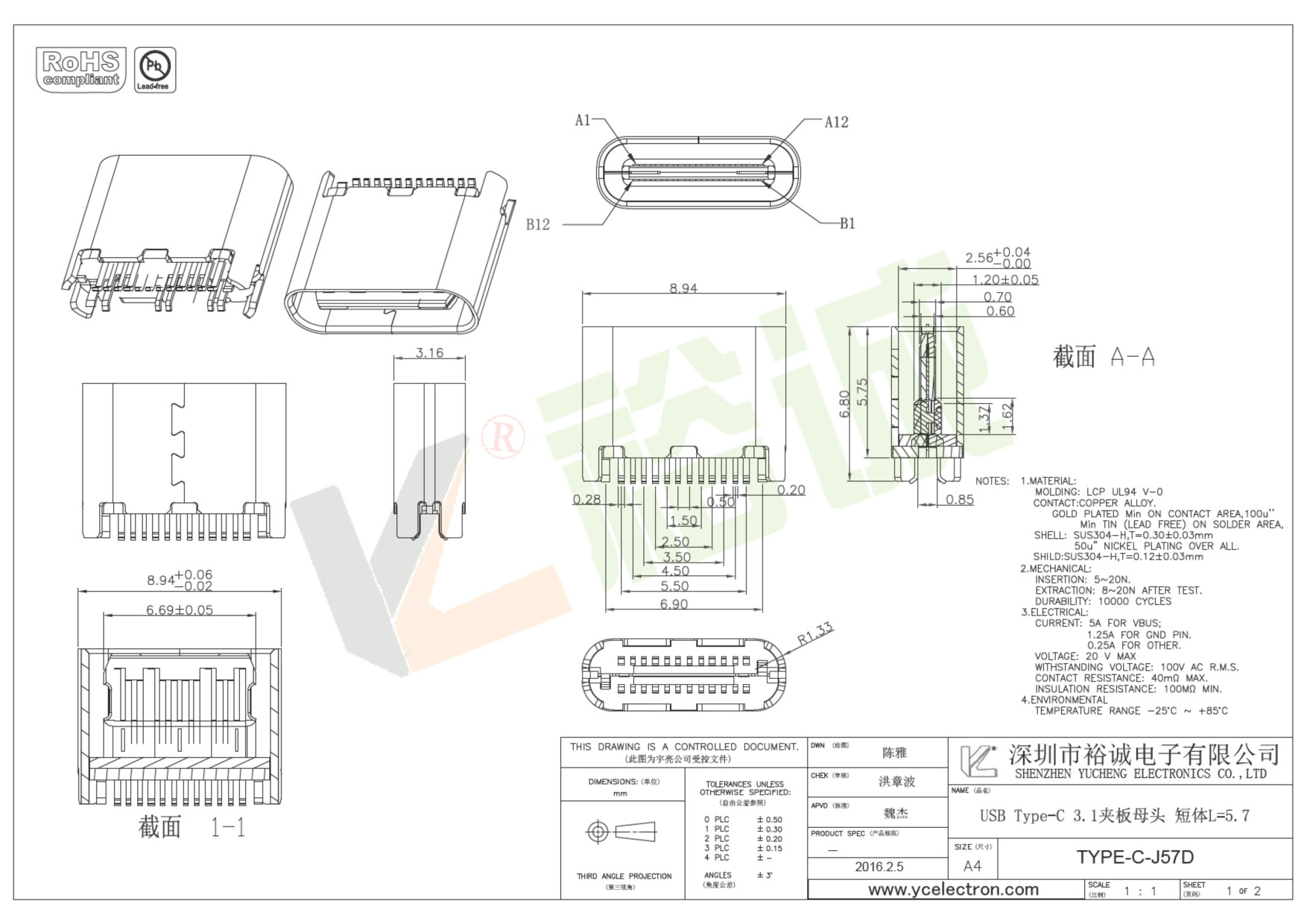

TYPE-C-J57D
Type:TYPE-C
Size:8.9mm*6.8mm
Specifications
1.Rating :AC 100V 5.0A
2.Contact Resistance: 40mΩMax
3.Lnsulation Resistance: 100mΩMin
4.Operating Temperature Range: －20℃＋85℃
5.Mating Durability: 10000 Cycles
