TYPE-C

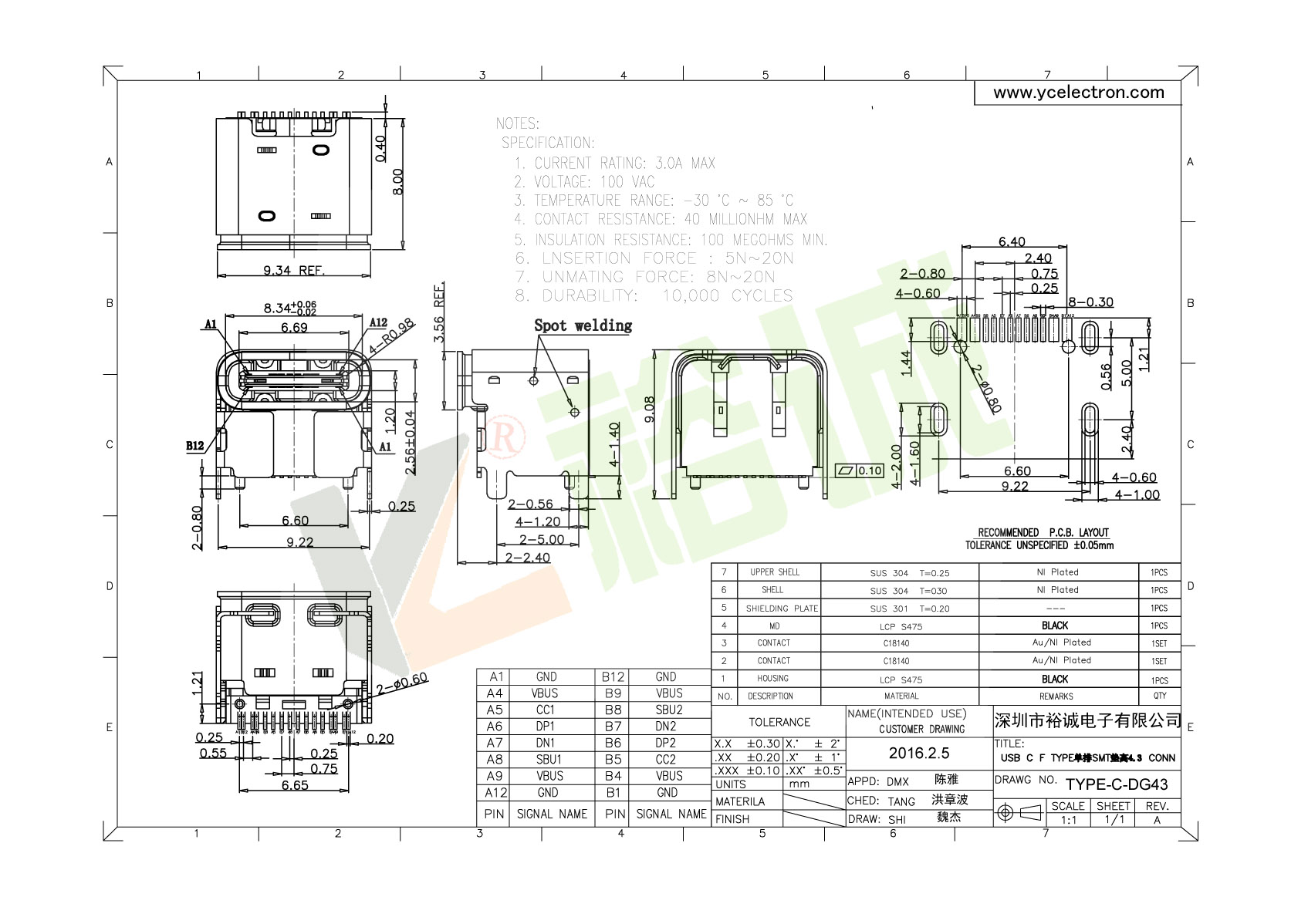

TYPE-C-DG43
Type:TYPE-C 12P
Size:9.34mm*8.0mm
Specifications
1.Rating :AC 100V 3.0A
2.Contact Resistance: 40mΩMax
3.Lnsulation Resistance: 100mΩMin
4.Operating Temperature Range: －30℃＋85℃
5.Mating Durability: 10000 Cycles
