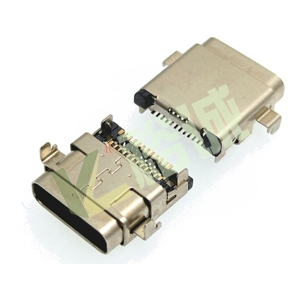

TYPE-C
TYPE-C-CS12
Type:TYPE-C 24P
Size:11.75mm*9.95mm

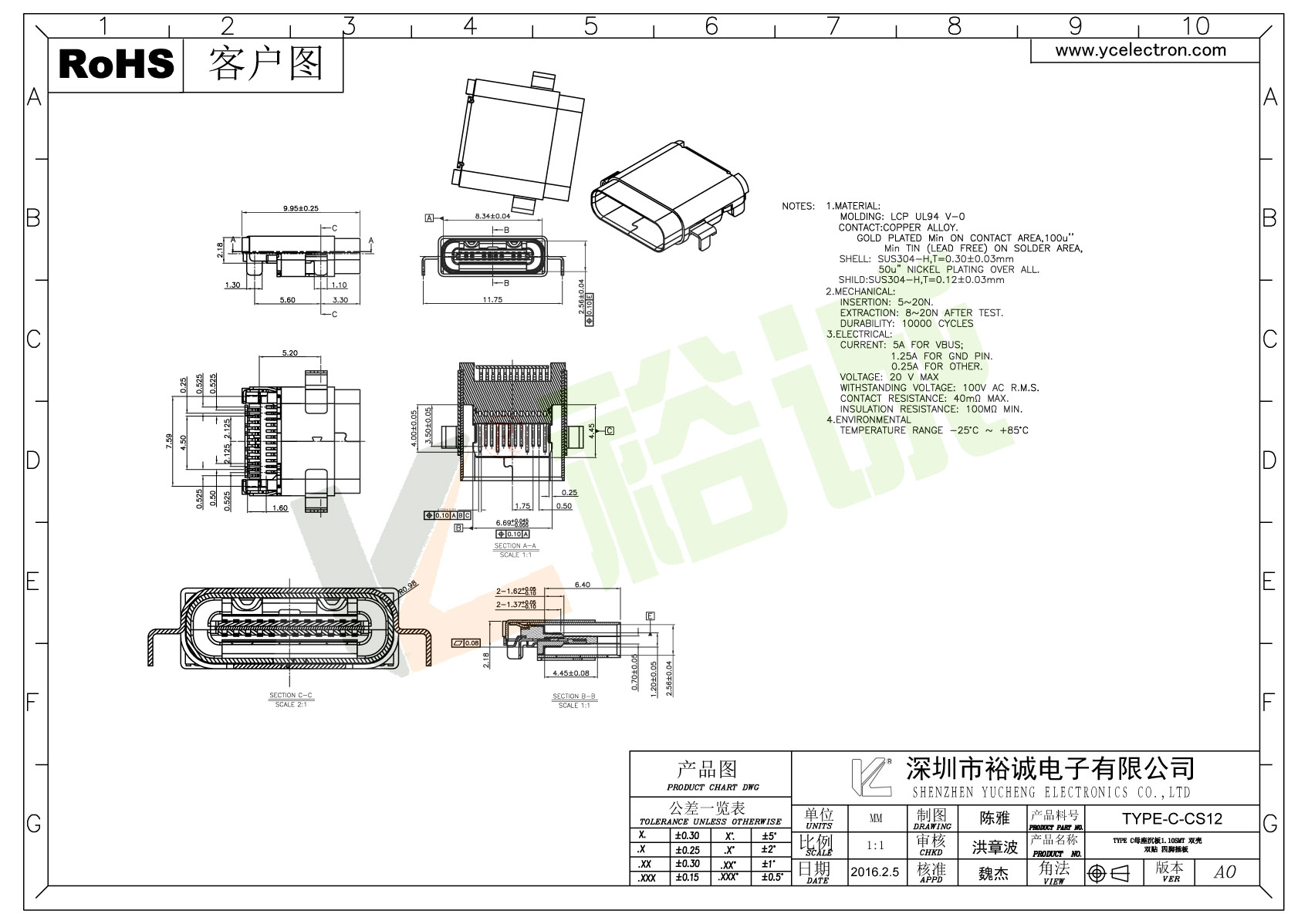

Specifications
1.Rating :AC 100V 5.0A
2.Contact Resistance: 40mΩMax
3.Lnsulation Resistance: 100mΩMin
4.Operating Temperature Range: －25℃＋85℃
5.Mating Durability: 10000 Cycles
