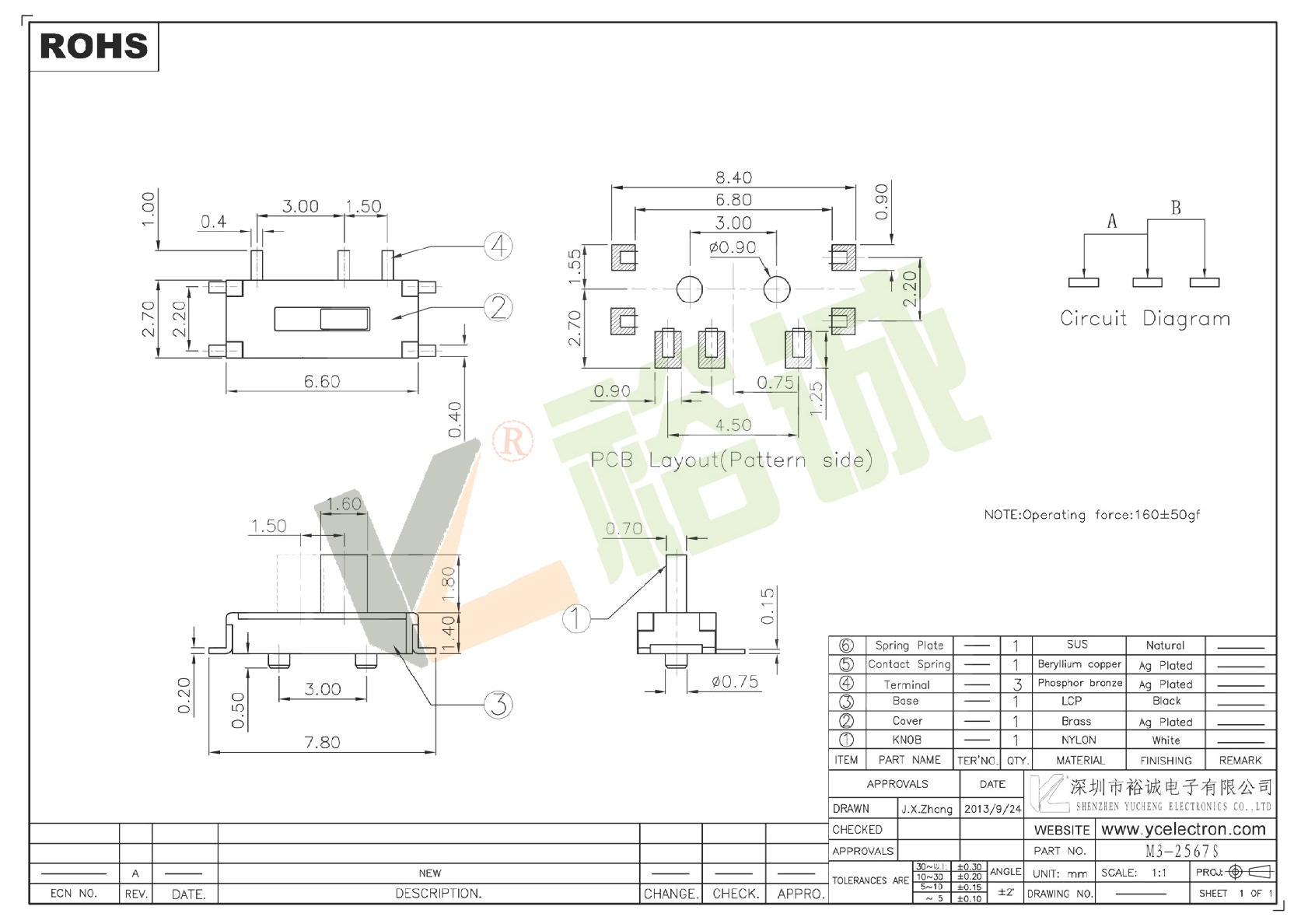

Toggle switch
M3-2567S
Size:6.6mm*2.7mm
Operating Force:160gf
Typical Specifications
1. Rating : DC 4V 0.3A
2. Contact Resistance : ≤100mΩ
3.Lnsulation Resistance: DC500V 1Minute
4.Operating Temperature Range: －25℃＋80℃
5.Ambient Humidity Used: ≤85%RH
6. Operating Force : 160gf
7. Operating Life : 10,000Cycles
