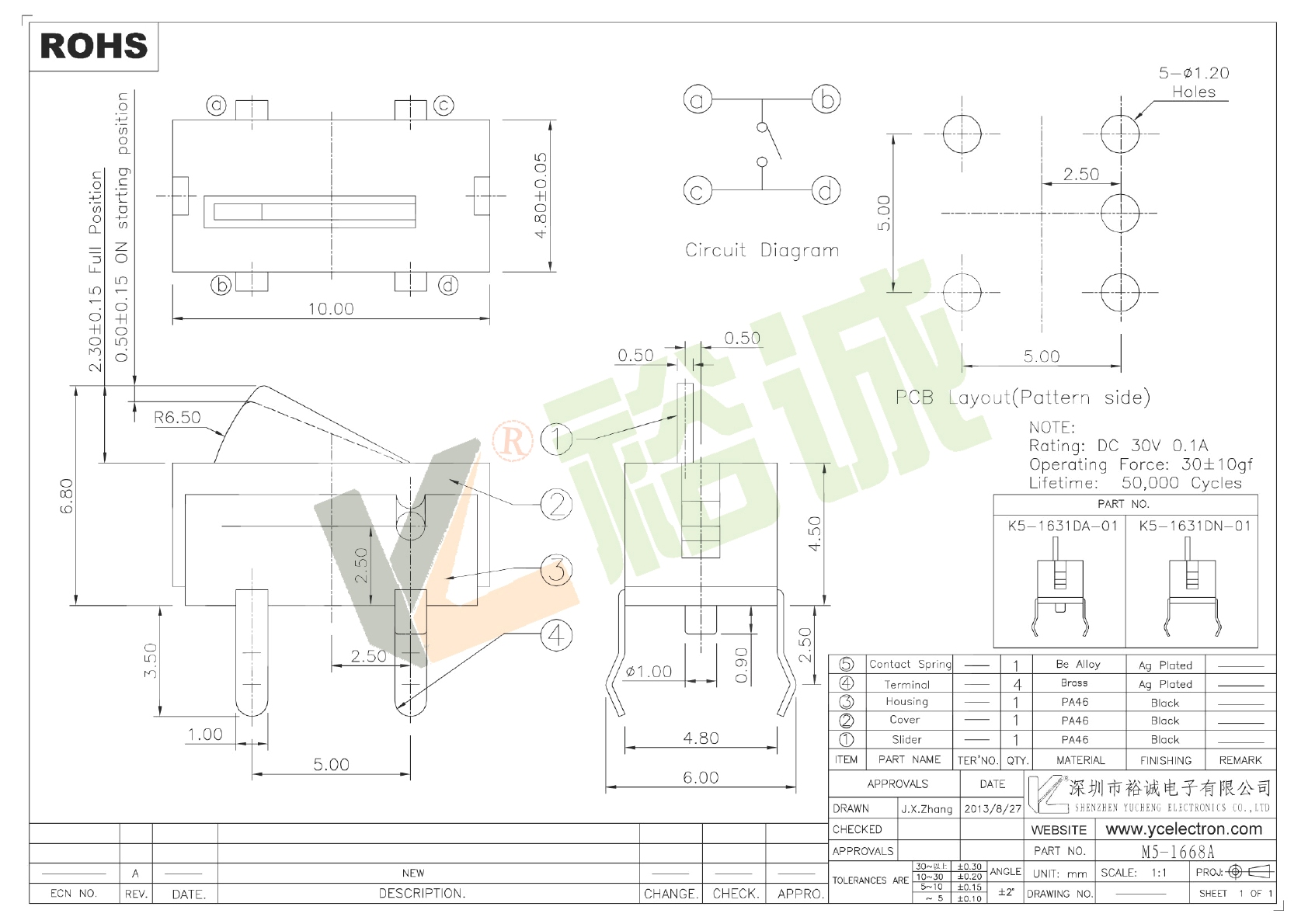

Detection switch
M5-1668A
Size:10.0mm*4.8mm
Operating Force:30±10gf
Typical Specifications
1.Rating : DC 30V 0.1A
2.Contact Resistance: ≤100mΩ
3.Lnsulation Resistance: ≥100mΩ DC500V
4.Operating Temperature Range: －25℃＋80℃
5.Ambient Humidity Used: ≤85%RH
6.Operating Force :30gf±10gf,
7.Life : 50,000 Cycles
