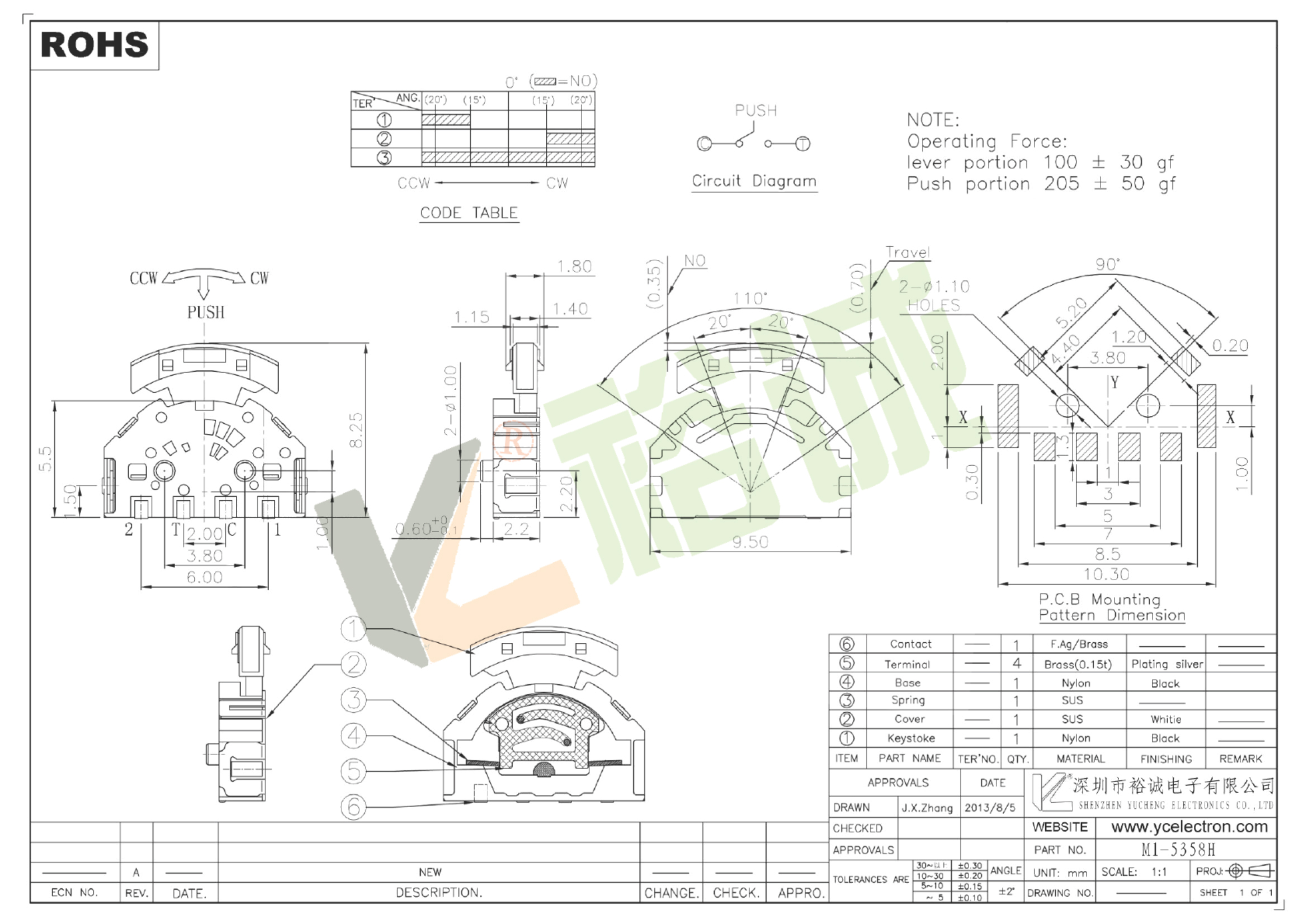

Multi function switch
M1-5358H
Size:9.5mm*8.25mm
Operating Force:100gf/205gf
1.Rating : DC 5V 10mA
2. Contact Resistance:100mΩMAX
3. Insulation Resistance:100MΩMIN
4. Soldering Temper: 260±5°/5s
5. Mechanical Life: 100,000 cycles
6. Electrical Life: 100,000 cycles
7. Ambient Temper.Used: -25 ℃ to 85 ℃
8. Ambient Humidety Used: 85% RH
