Micro switch
M7-1163P
Size:19.8mm*6.0mm
Operating Force:30±10gf
Typical Specifications
1.Rating:AC125V 5A/250V 3A
2.Contact Resistance: ≤100mΩ
3.Lnsulation Resistance: ≥100mΩ DC500V
4.Operating Temperature Range: －25℃＋85℃
5.Ambient Humidity Used: ≤85%RH
6.Mechanical Life:1000,000 Cycles
7.Operating Force:30±10gf

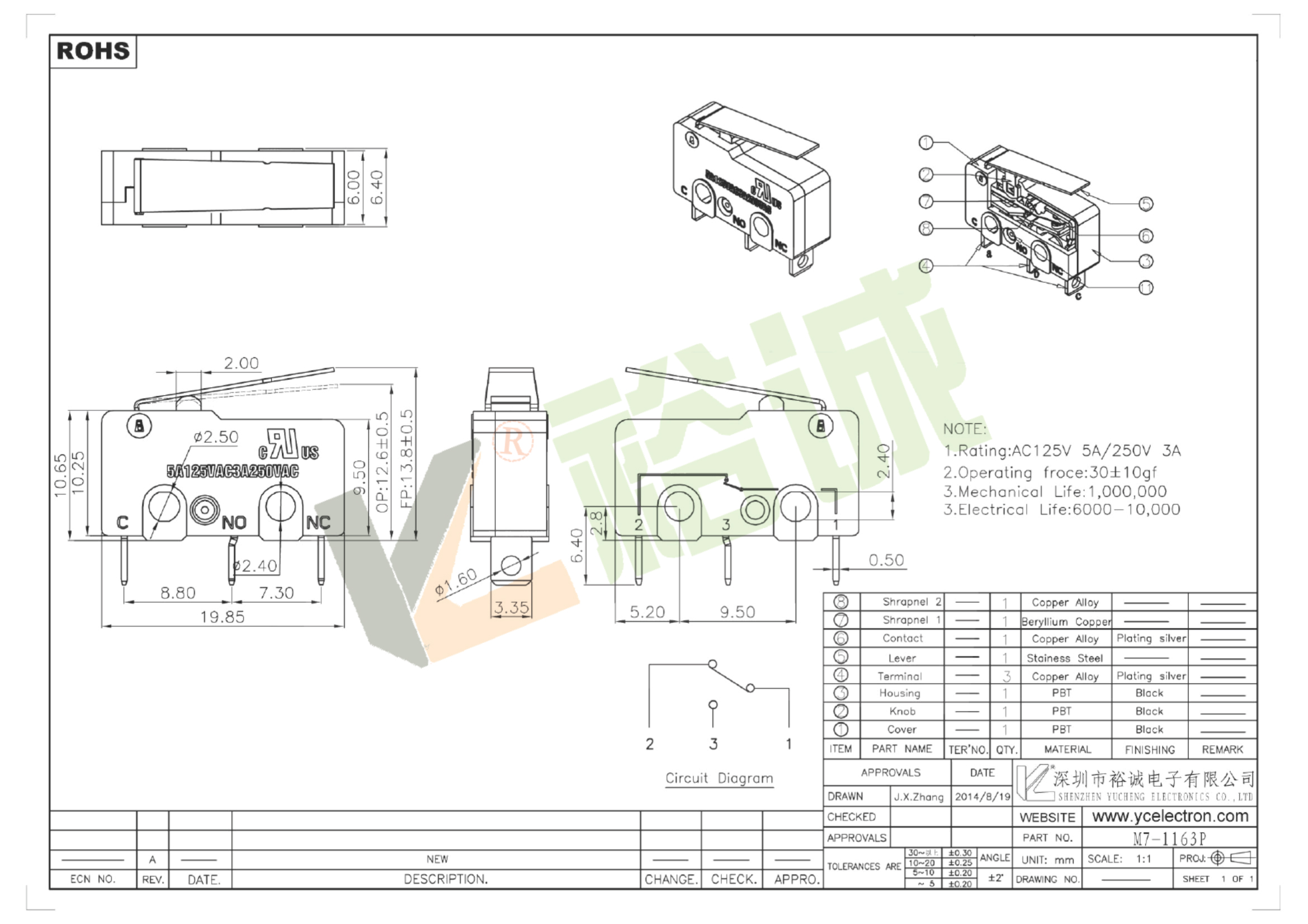

產(chǎn)品規(guī)格書：
