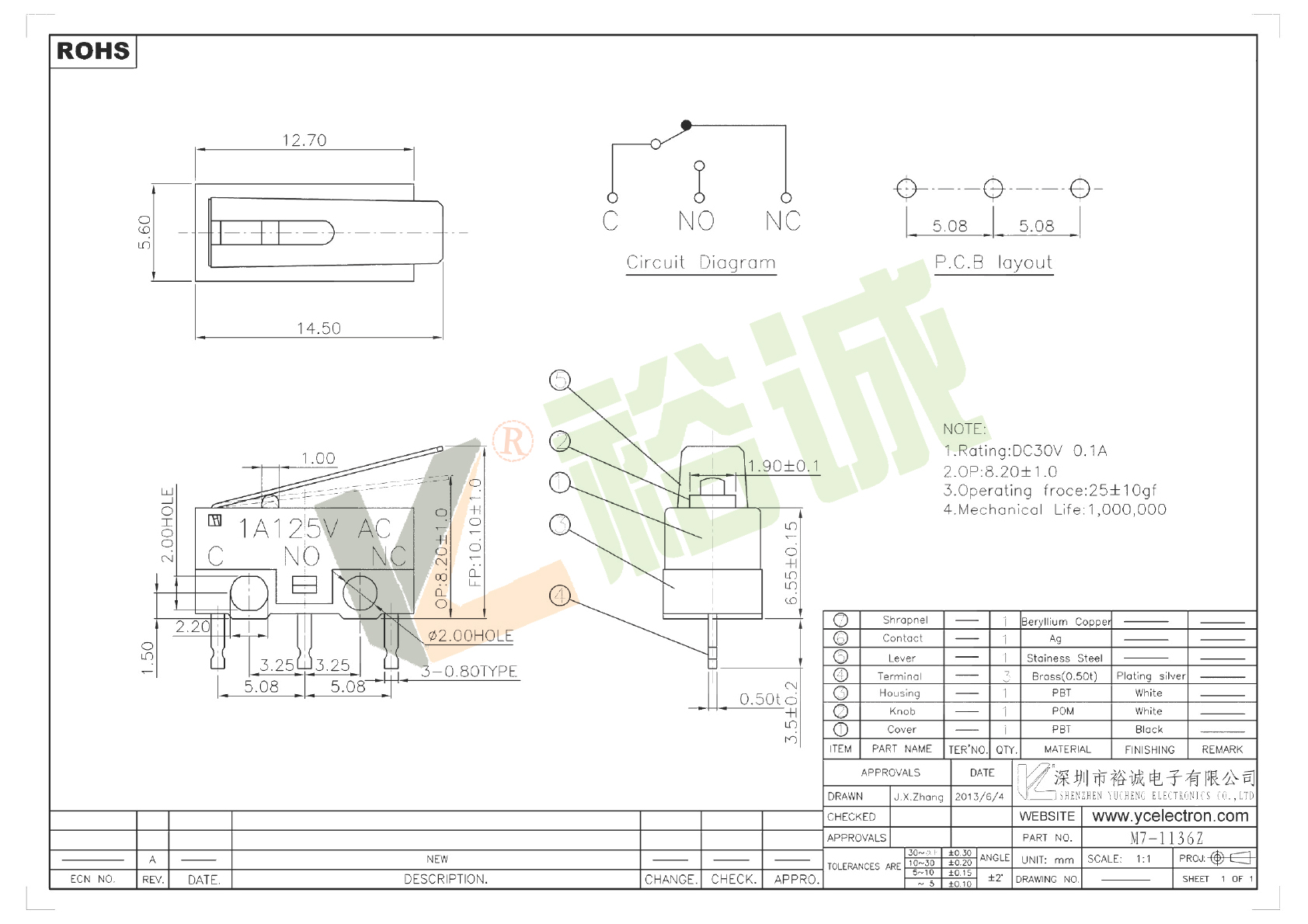

Micro switch
M7-1136Z
Size:12.7mm*5.6mm
Operating Force:25±10gf
Typical Specifications
1.Rating : DC30V 0.1A
2.Contact Resistance: ≤100mΩ
3.Lnsulation Resistance: ≥100mΩ DC500V
4.Operating Temperature Range: －25℃＋85℃
5.Ambient Humidity Used: ≤85%RH
6.Mechanical Life: 1,000,000Cycles
7.Operating Force:25±10gf
8.OP:8.7±0.5mm
產(chǎn)品規(guī)格書：
