Dial switch

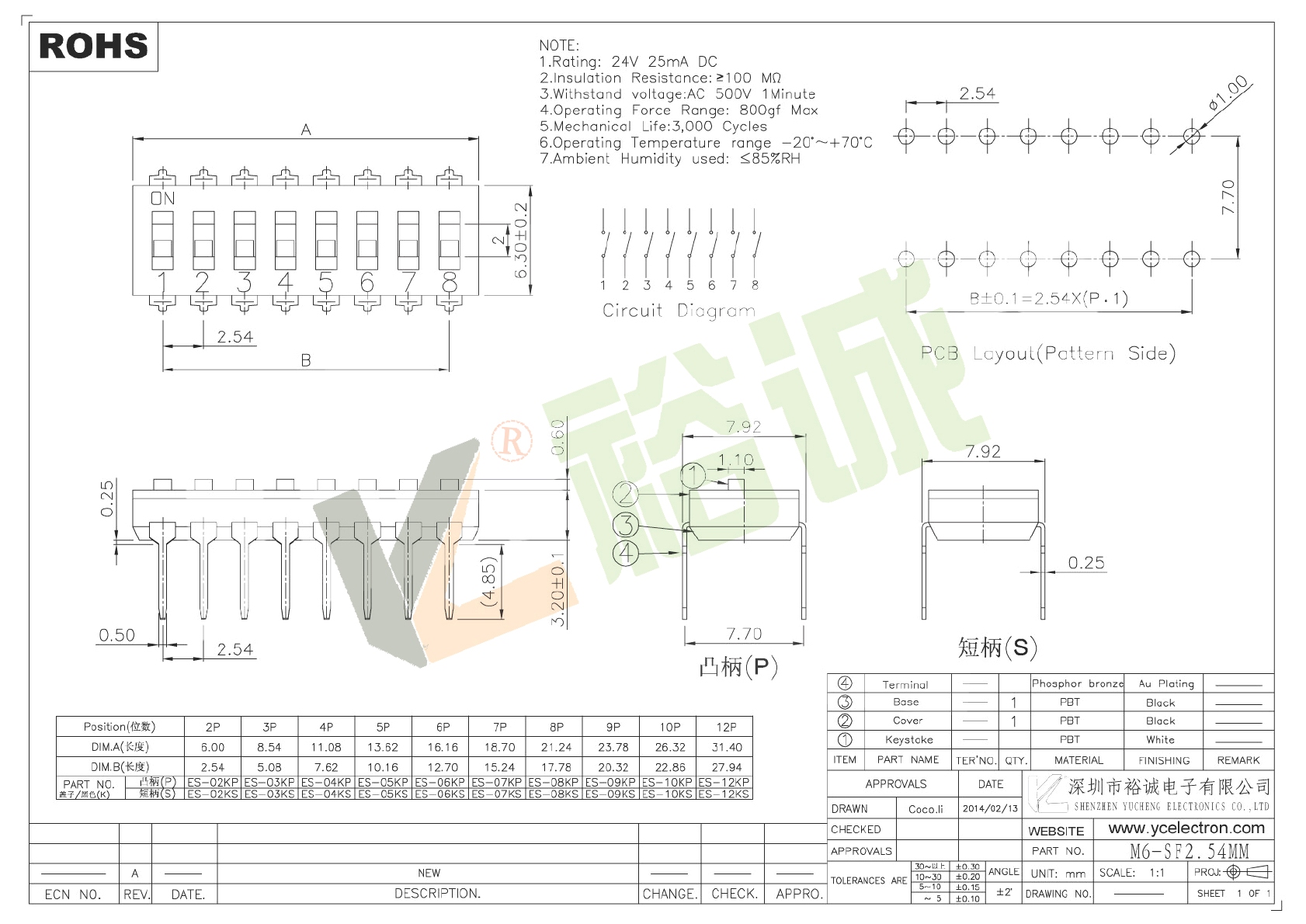

M6-SF2.54MM Dial switch
Size:2P-12P
Features: high temperature, gold plated
Typical Specifications
1.Rating: 24V 25mA DC
2.Insulation Resistance: ≥100 MΩ
3.Withstand voltage:AC 500V 1Minute
4.Operating Force Range: 1000gf Max
5.Mechanical Life:3,000 Cycles
6.Operating Temperature range：-20°～+70°C
7.Ambient Humidity used: ≤85%RH
產(chǎn)品規(guī)格書：
