Dial switch

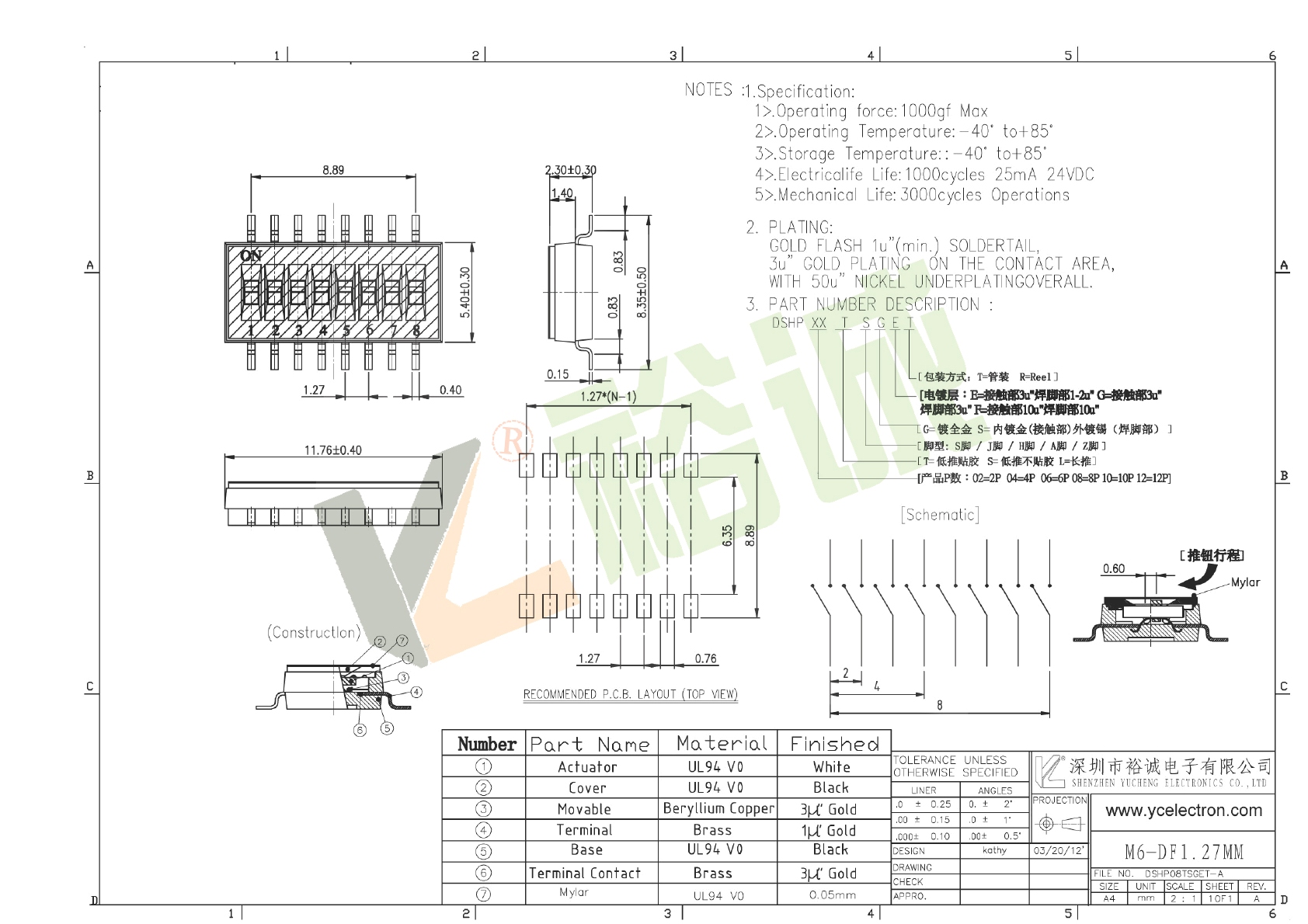

M6-DF1.27MM Dial switch
Size:2P,4P,6P,8P,10P,12P
Features: high temperature, gold plated
Typical Specifications
1.Rating: 24V 25mA DC
2.Insulation Resistance: ≥100 MΩ
3.Withstand voltage:AC 500V 1Minute
4.Operating Force Range: 1000gf Max
5.Mechanical Life:1,000 Cycles
6.Operating Temperature range ： -20°～+70°C
7.Ambient Humidity used: ≤85%RH
產(chǎn)品規(guī)格書：
