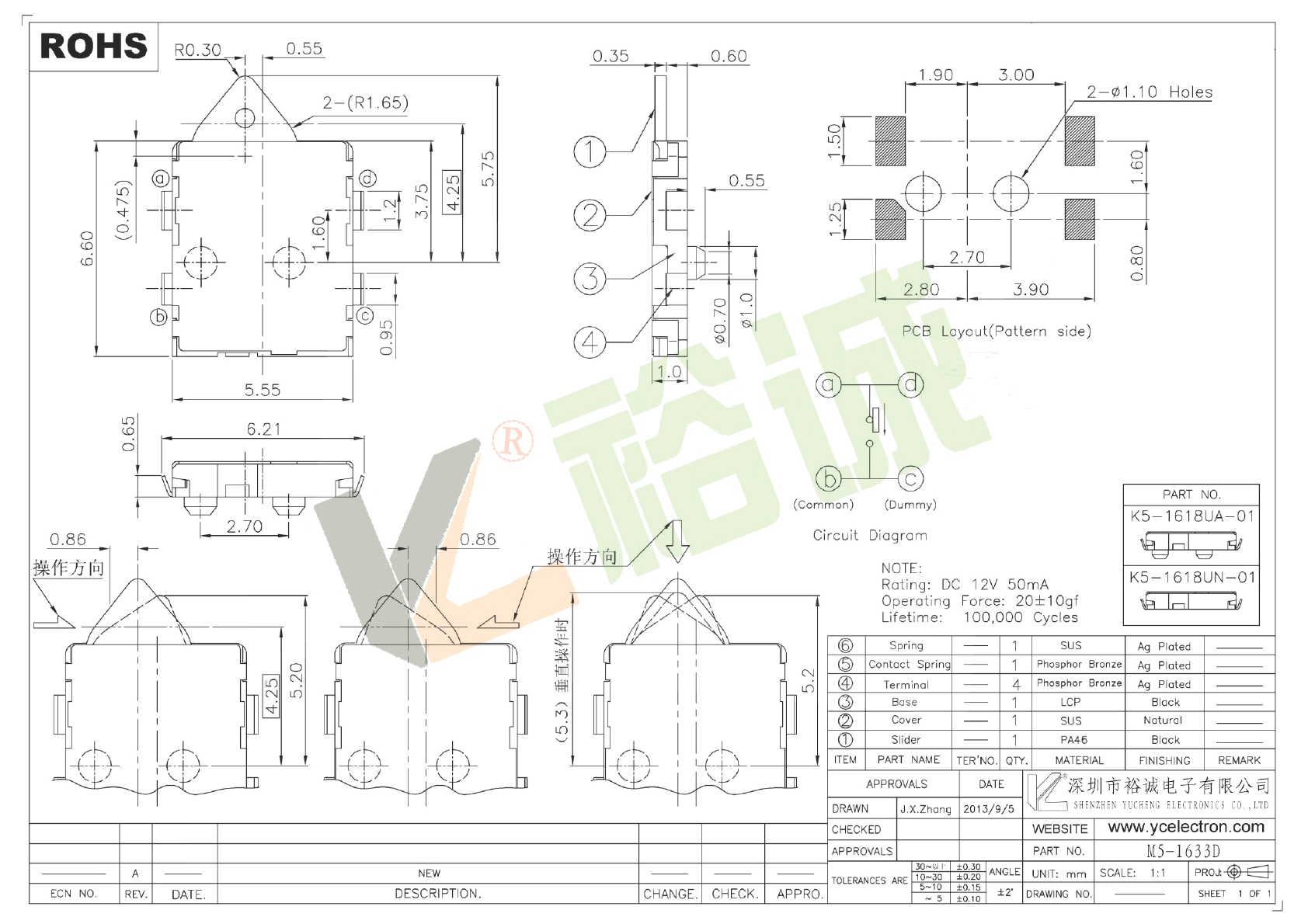

Detection switch
M5-1633D
Size:8.6mm*5.55mm
Operating Force:20±10gf
Typical Specifications
1.Rating : DC 12V 50mA
2.Contact Resistance: ≤100mΩ
3.Lnsulation Resistance: ≥100mΩ DC500V
4.Operating Temperature Range: －25℃＋80℃
5.Ambient Humidity Used: ≤85%RH
6.Operating Force :20gf±10gf,
7.Life : 100,000 Cycles
產(chǎn)品規(guī)格書：
