Toggle switch
M3-2585S
Size:11.5mm*12.7mm
Operating Force:300±100 gf
Typical Specifications
1. Rating : 5A120VAC
2. Insulation Resistance:1,000M min
3. Dielectric Strength:1,500V RMS
4.Operating Temperature Range: －25℃＋80℃
5.Ambient Humidity Used: ≤85%RH
6. Operating Force : 300gf±100gf
7. Operating Life : 30,000 cycles

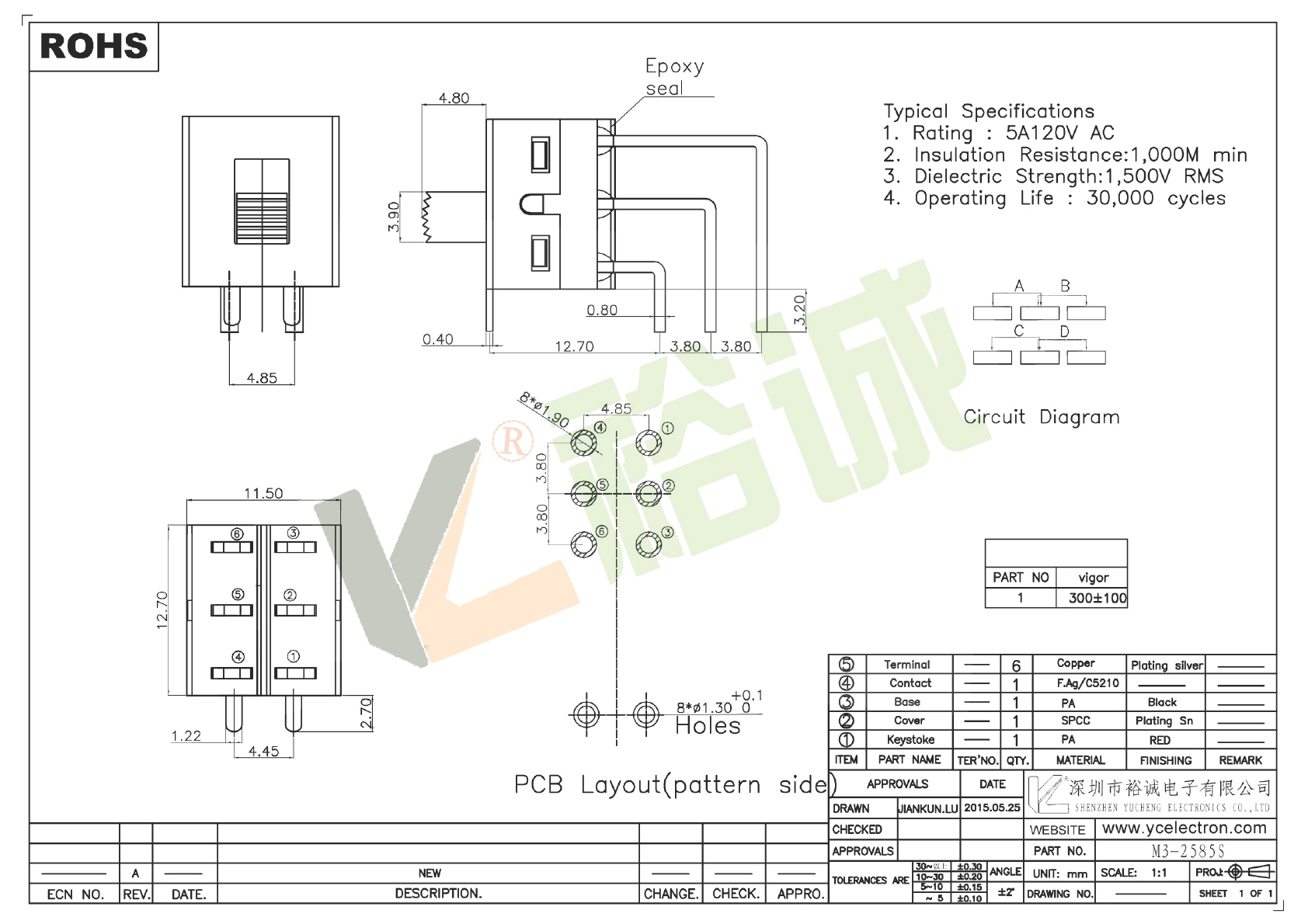

產(chǎn)品規(guī)格書：
